Balancing Robot

Konstruiert und fotografiert von Willem Evert Nijenhuis.
Hochgeladen am 12.5.2013, 16:50 von winijenh.  1 / 10

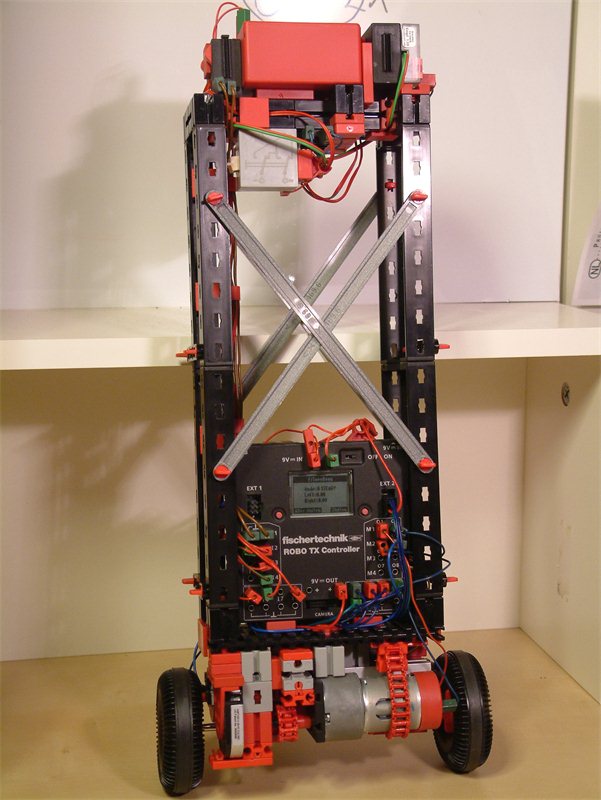

The drive parts are below the ground plate 120*60. The sensor and the TX are sitting on top of it. To make stabalizing a bit easier the weighty battery is on top, with the remote control unit mounted next to the battery with the infrared receiver upwards.
