Interface with FT

Konstruiert und fotografiert von Richard R. Budding.
Hochgeladen am 15.4.2006, 23:14 von rbudding.  2 / 4

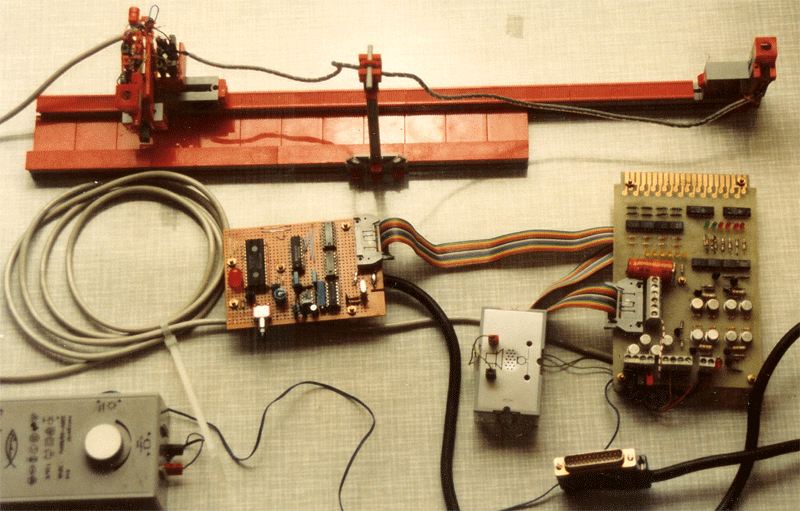

Model from early 1983. The Yellow LEDs were for the digital input, the Red LEDs are for two motors (left / Right) and the green LEDs are for two Ft lamps. The output voltage was 5 volt.

I programmed this with basic.
