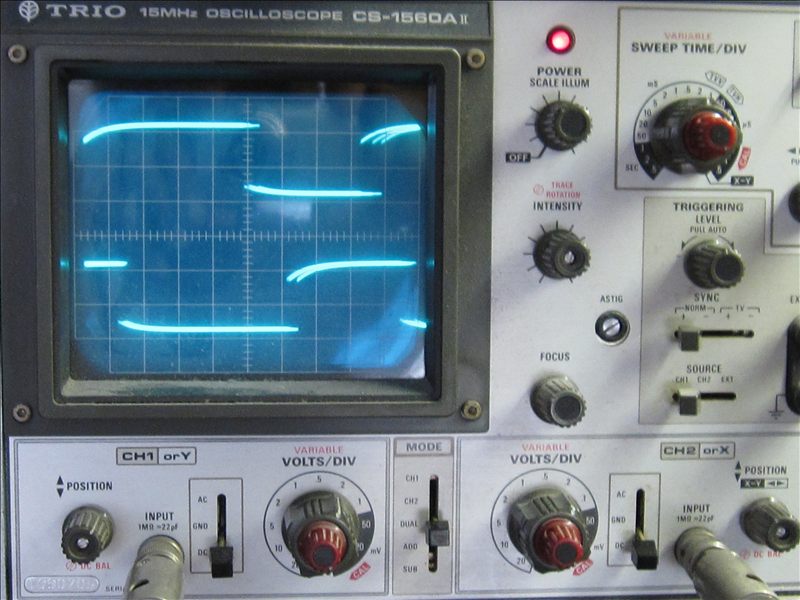

Scope image of Spursucher at approx. 225Hz

Leider sind Konstrukteur und Fotograf nicht angegeben.
Hochgeladen am 13.6.2009, 15:03 von Ad.  2 / 2

Here we see the two channels of the Spursucher when looking at a Drehscheibe with 18 black segments and rotating approx. 12 rev/sec. The duty cycle and phase relation is influenced by adjustment of the Spursucher relative to the disk (both coaxial and radial distance).
