Detail of the turntable drive

Konstruiert und fotografiert von Rubem Pechansky.
Hochgeladen am 11.2.2014, 14:29 von rubem.  9 / 17

Schlagworte: Wormgear, turntable, pinion, direct, drive, gearbox, gear, axle.

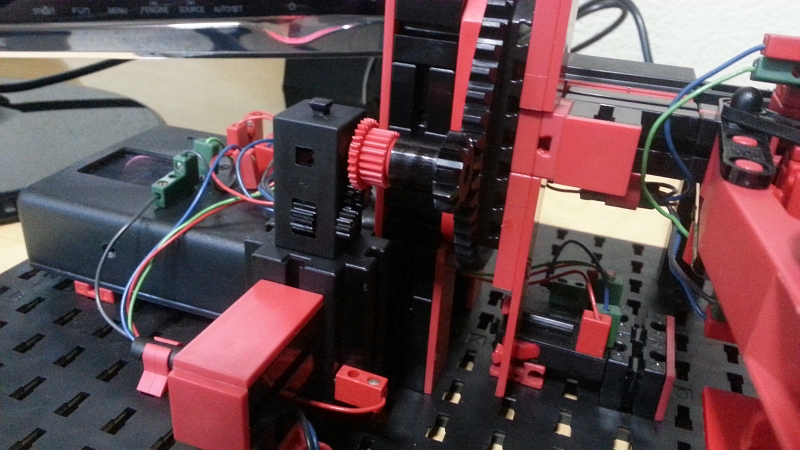

This image shows how I’m driving the turntable. I’ve simply attached a Z10 pinion to the motor gearbox using a 40mm geared axle. Since I’m using a 6VDC power supply, the original drive (which uses a 35072 wormgear) is a bit slow.
