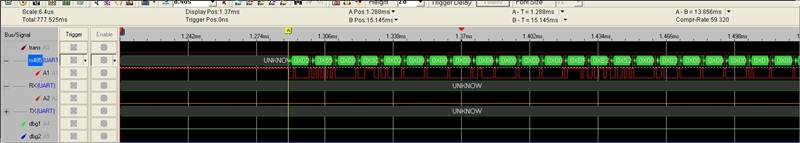

Detail of the first frame (req. ext4)

Leider sind Konstrukteur und Fotograf nicht angegeben.
Hochgeladen am 21.3.2010, 18:38 von Ad.  9 / 11

The protocol is disclosed in the documentation of the FtMscLib on the ft website. The 5th nyte indicates that it is a message from the Master and the 9th byte indicates that it is destined for Ext.4. Also visisble are the TransactionID (bytes 13-14) and the SessionID (bytes 15-16). Byte 17 reveals that it concerns an output command / input request.
