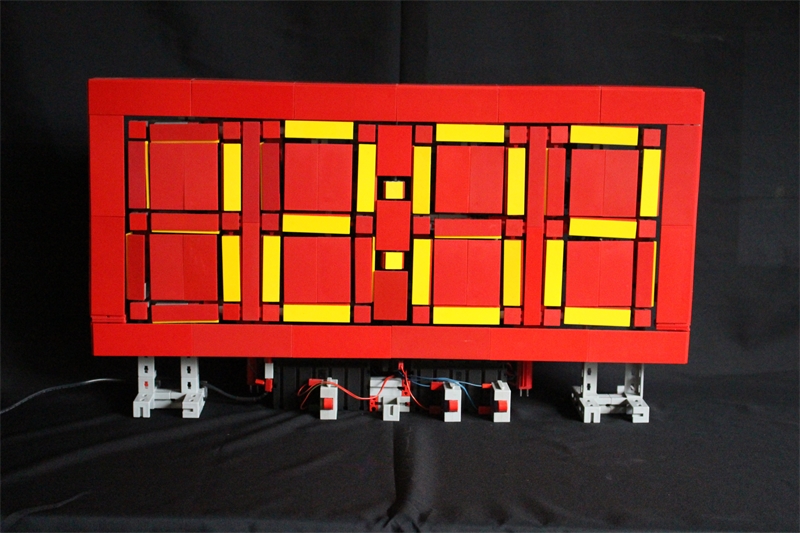

7-Segment Clock

Konstruiert und fotografiert von Willem Evert Nijenhuis.
Hochgeladen am 7.3.2016, 12:45 von winijenh.  1 / 16

The problem with mechanical 7-segment drives is that the 7 segments are layed out in a way that makes it difficult to drive all segments with the same mechanical power source. Of course you can use one motor or one electromagnetic power source for each segment, but that requires 28 motors or electromagnets for one clock. It is impractical, and too large fysically.

My goal was to use one power source for all seven segments.

robvanbaal (7.3.2016, 18:46:42)

Two minutes past twelve… Time for lunch!

Well done. Very nice model Willem Evert!

peterholland (7.3.2016, 20:54:13)

Prachtig uniek model ! Gefeliciteerd + complimenten.

Gruss,

Peter Poederoyen NL

Martin Wanke (7.3.2016, 21:13:39)

Hi Willem, Really fascinating model with brilliant mehanics. Martin

Dirk Fox (8.3.2016, 09:46:44)

Hi Willem, this is a marvelous solution. I had been working on such a clock some years ago, but I could not find a method small enough to adjust the segments. The mechanism you invented is really amazing… Very well done! Regards, Dirk

DasKasperle (4.8.2016, 20:30:32)

Very nice Project, it looks great. Best Regards Kai
