110924 ft Convention_083

Konstruiert von Paul van Niekerk. Fotografiert von unbekannt.
Hochgeladen am 25.9.2011, 07:45 von FtfanClub.  1 / 6

niekerk (2.10.2011, 22:30:12)

Der Konstrukteur bin ich.

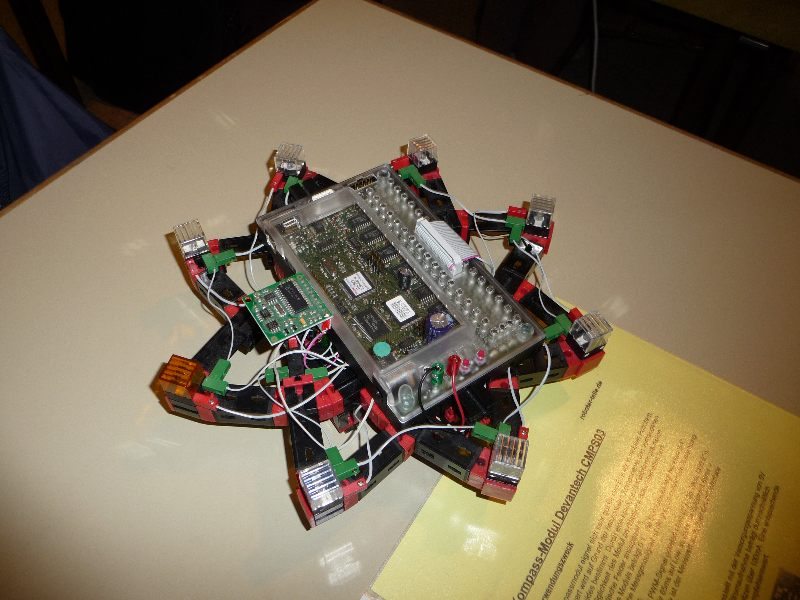

This is an electronic compass module CMPS03 from Devantech, interfaced to the Fast Counter Input of the RoboInterface. A small C program accurately measures the PWM value output by the compass module, and lights the bulb facing North.
