Proto Type of the Print and Sonar

Konstruiert und fotografiert von Richard R. Budding.
Hochgeladen am 27.6.2006, 16:42 von rbudding.  11 / 32

Hi all,

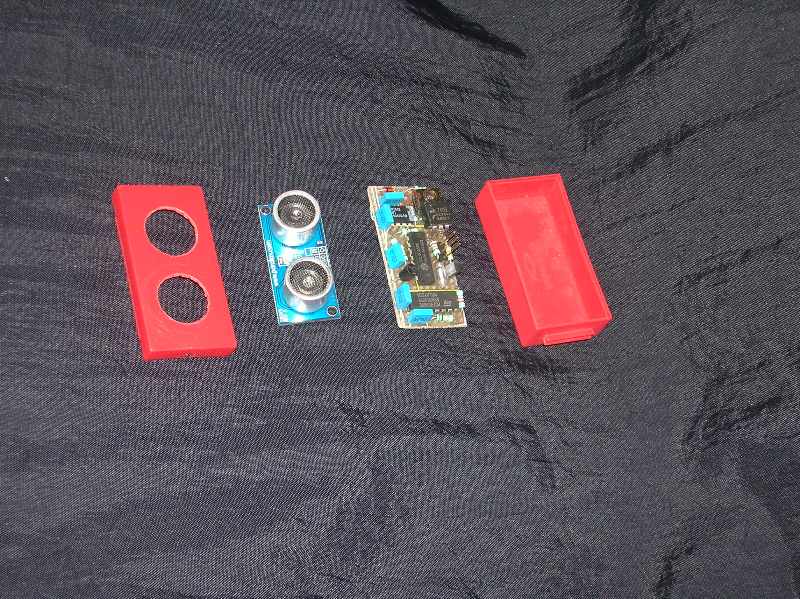

The sensor is finshed. The prototype fits the 9V FT box, with a little trouble.

The pcb will we created after extensive testing. It looks great!
