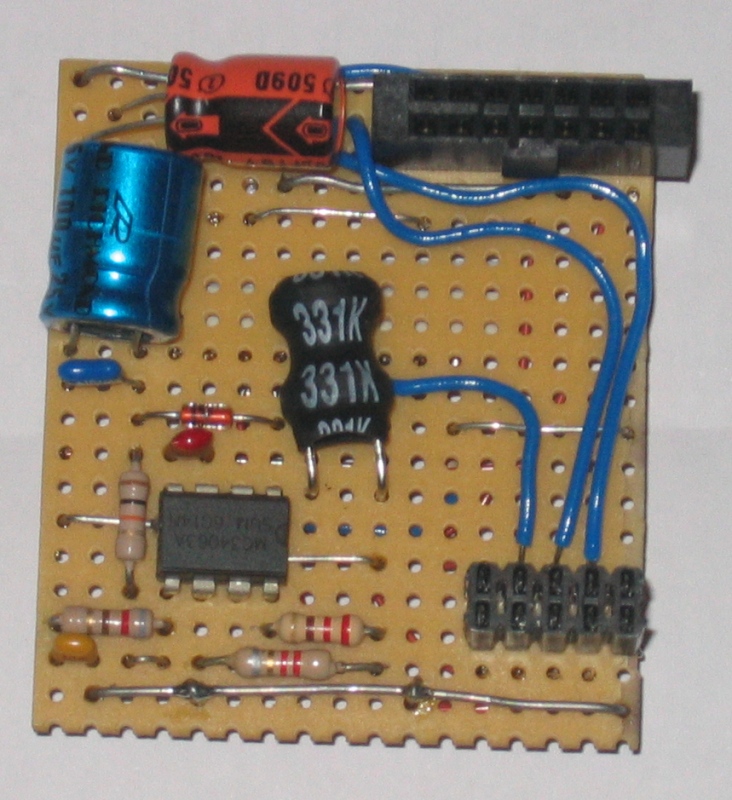

Component side of the PCB

Konstruiert und fotografiert von Ad van der Weiden.
Hochgeladen am 23.1.2009, 08:29 von Ad.  15 / 20

The electronic circuit is only needed to generate the 15V for the LCD from the 3.3V of the RI.
