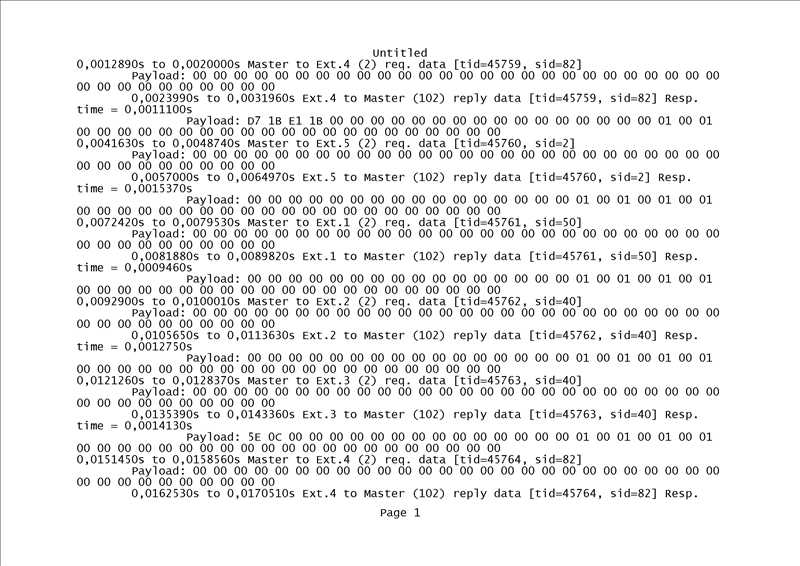

Protocol analysis of the same trace

Leider sind Konstrukteur und Fotograf nicht angegeben.
Hochgeladen am 21.3.2010, 18:38 von Ad.  11 / 11

Visible are the start and stop times of the frames, commands/replies and the TID/SID combinations. Clearly the Master interrogated the slaves in the sequence 4, 5, 1, 2, 3 and 4 again.
