Digital Clock v1

Konstruiert und fotografiert von Willem Evert Nijenhuis.
Hochgeladen am 12.5.2012, 17:08 von winijenh.  9 / 18

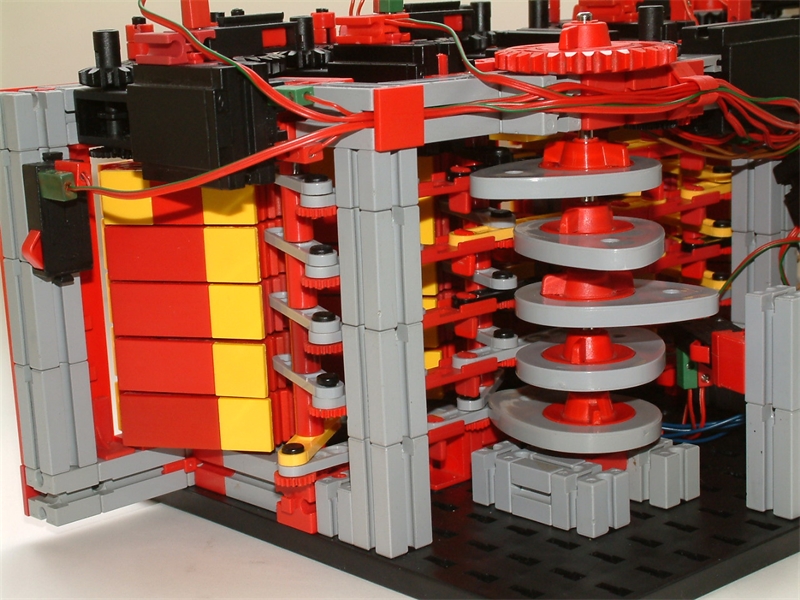

When a levers is pushed by a cam plate (Nockenscheibe) they unblock the same-level rings at the 3 digits (minutes and unit hours) and then the motor can turn the axle and the unblocked rings will turn as well.

Endlich (12.5.2012, 18:20:48)

A dream!

Marten70 (12.5.2012, 23:43:42)

Super!! Saubere Bekabelung. Sehr gelungenes Modell.

Mfrgr Marten
